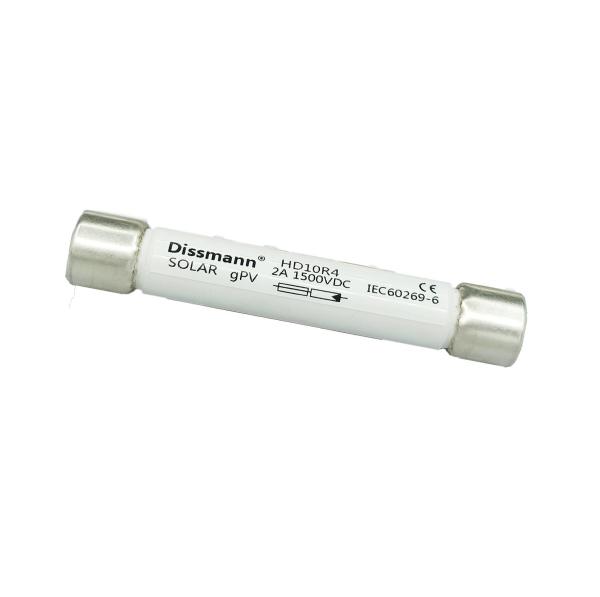

1500VDC High Voltage Dc Fuse , Ceramic Solar Amp Power Cable Fuse

Name: 1500VDC High Voltage Dc Fuse Ceramic Solar Amp Power Cable Fuse
Brand: Dissmann
Price: 1 USD

Wholesale 1500VDC High Voltage Dc Fuse , Ceramic Solar Amp Power Cable Fuse from china suppliers

Brand Name : Dissmann

Model Number : HD10R

Certification : UL、TUV

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Colour : White

Rated Voltage : 1500VDC

Rated Current : 2A

Breaking Capacity : DC10KA

Standard : UL248-13、 IEC60269.6、ROHS

Usage : Solar，PV

Keyword : Cable fuse

Contact Now

Solar Fuse PV Fuse Low Current Fuse High Voltage Fuse Cable Fuse

Material:
Noumenon: Ceramic
Pins: Copper alloy

Product Presentation:

Rated Voltage

DC1500V

Characteristic

gPV/aR

Rated Current

1A-40A

Breaking Capacity

DC10KA

Meet the Requirement

UL248-13,IEC60269.6

Remarks

UL,TUV

Overall dimensions of the product(mm)
1500VDC High Voltage Dc Fuse , Ceramic Solar Amp Power Cable Fuse

Product type

Model	Rated current (A)	Rated voltage (V)	Breaking capacity
HD10R4/HD10W4	1A～20A	1500Vdc	10KA
HD10R4.J03/HD10W4.J03	1A～40A	1500Vdc	10KA
HD10R5	1A～20A	1500Vdc	10KA
HD14R6	20A～40A	1500Vdc	10KA
HDPV5	40A	1500Vdc	10KA

Performance criteria

Blowing current	Fusing time
200%	＜4min
135%	＜1h
113%	＞1h
100%	＞4h

Current characteristic curve
1500VDC High Voltage Dc Fuse , Ceramic Solar Amp Power Cable Fuse

Test Equipment

Production Equipment

Our Certificate

Hot Tags: fuse for solar, Non-current Limiting Fuse, Low Voltage British Standard BS 88 Fuses,Automotive fuse, Fuse for BDU, Inline Cartridge Electrical Fuses Holder, 1000VDC fuse,Car blade fuse

Product Tags:

1500VDC high voltage dc fuse

Ceramic high voltage dc fuse

Solar amp power cable fuse

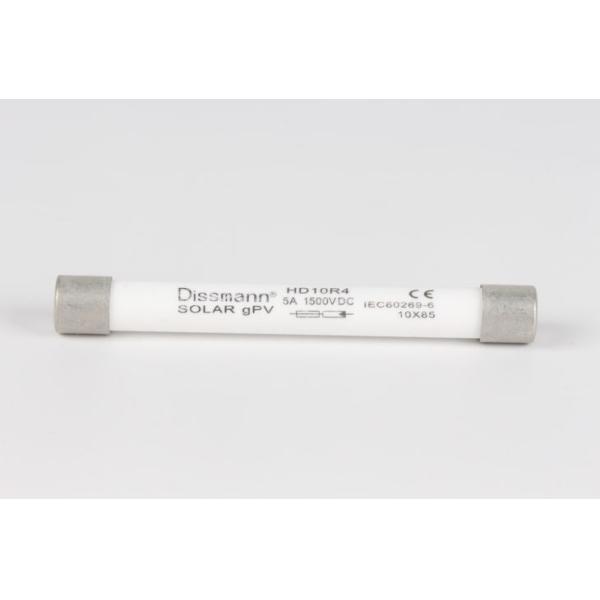

1500VDC High Voltage Dc Fuse , Ceramic Solar Amp Power Cable Fuse Images
